Auction Information

ONLINE AUCTION WITH LIVE ONLINE BID-CALLING

HUGE, WELL MAINTAINED CNC FACILITY - BUSINESS CLOSING



ATS MACHINE & TOOL CO.

7750 DIVISION DR., MENTOR (CLEVELAND), OHIO 44060



Thursday, September 14, 9:00 am

INSPECTION WILL BE OFFERED ON WEDNESDAY, SEPTEMBER 13, 9-4



Featuring:

Nakamura-Tome WT150-II CNC Turning Center, 2018

Nakamura-Tome WT-300 CNC Turning Center

Nakamura-Tome SC-200 CNC Turning Center

Doosan Puma TT-2500-SY CNC Turning Center, 2015

(2) Doosan V740M CNC VTL’s with Milling

Hurco VMX-42 CNC Vertical Machining Center

Mori Seiki NV5000 CNC Vertical Machining Center

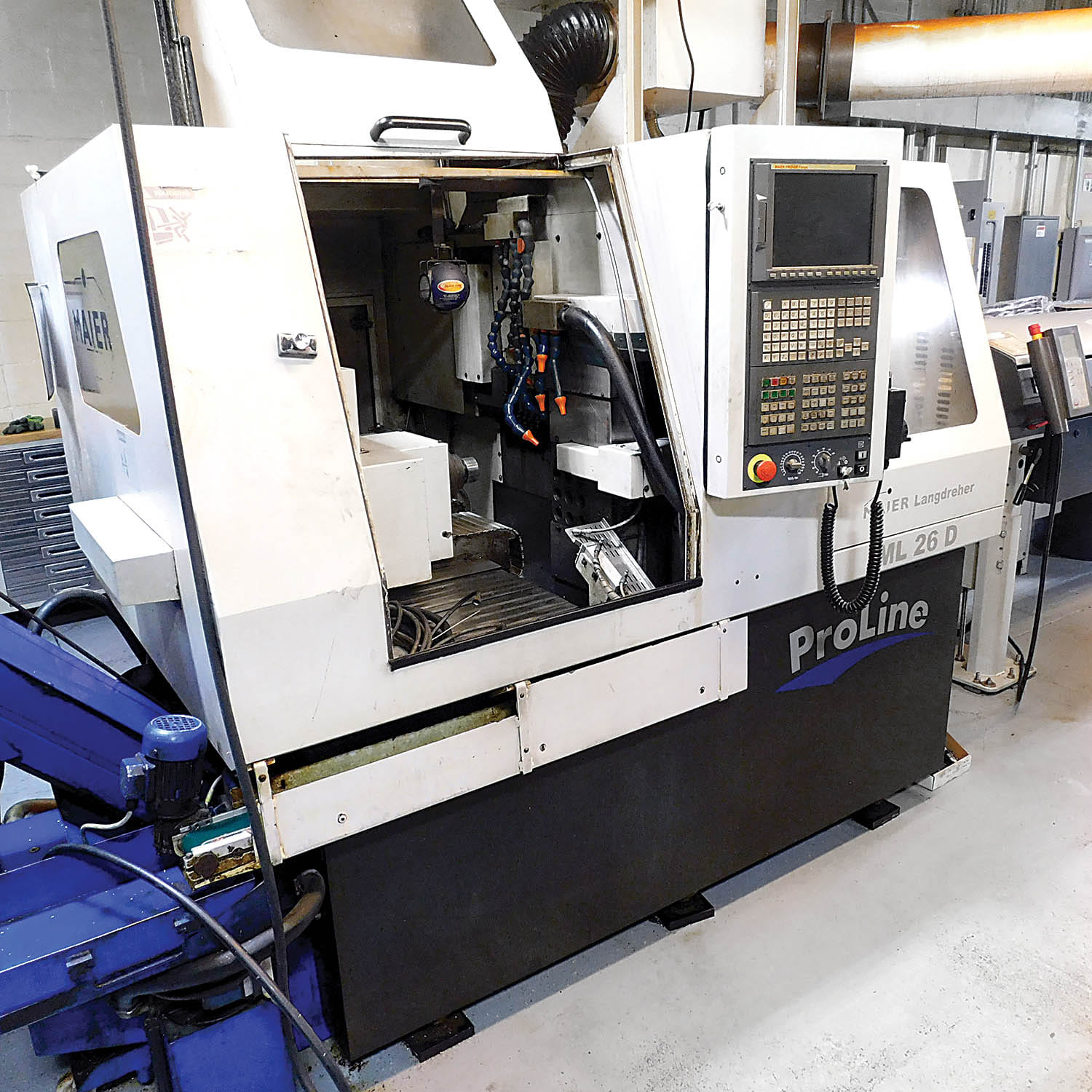

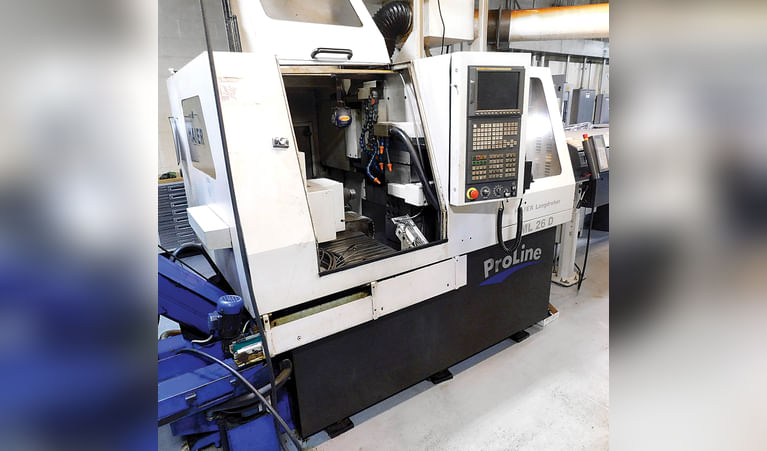

Maier ML26D CNC Swiss Screw Machine, 11-Axis

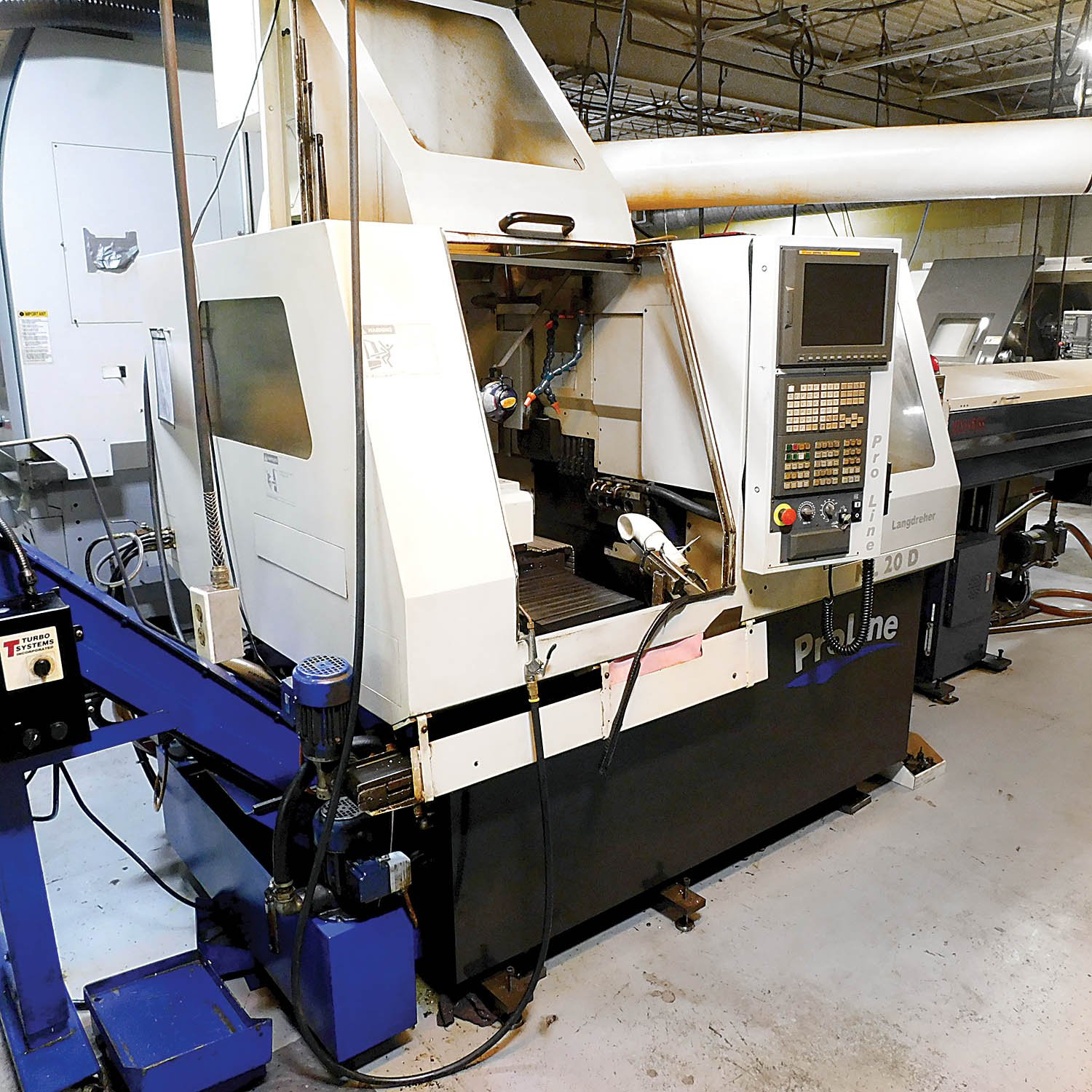

Maier ML20D CNC Swiss Screw Machine, 9-Axis

Okamoto OGM 1236 UNCIII CNC Grinder, 2015

Okamoto OGM 1220 UNCIII CNC Grinder, 2015

(2) Okamoto ACC-1224 DXV Surface Grinders

Hyd-Mech H-10A Automatic Band Saw

Mitsubishi FA-20 CNC Wire EDM

Mitsubishi FA-10 CNC Wire EDM

(2) Mitsubishi FX10 CNC Wire EDM’s

Mills*Lathes*Grinders*Hones*Saws

Fork Lifts*Compressors

100’s of additional items

 Shop Support Items, Gaging and Perishable Tooling

DETAILS:

OKAMOTO CNC CYLINDRICAL GRINDERS

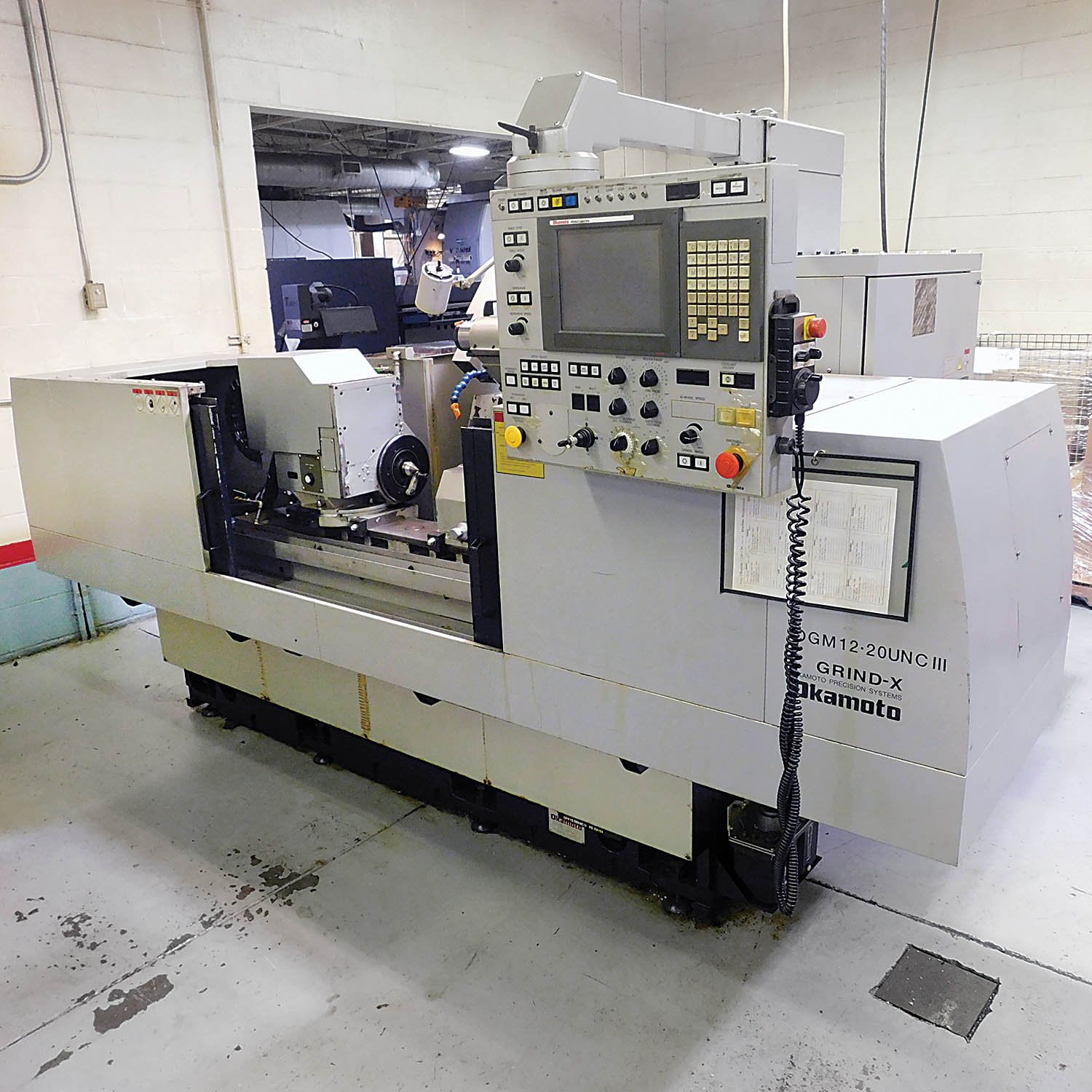

Okamoto Model OGM12-20UNC-III CNC Cylindrical Grinder, s/n 36163, New 2015, Fanuc CNC Control, 12.6” Swing Over Table, 20” Maximum Center Distance, 12” Maximum Diameter Ground, 14” X 1.5” X 5” Grinding Wheel Size, 1,610 RPM Grinding Wheel Speed, 11.8” Wheelhead Stroke (X-Axis), 30 Degree Wheelhead Swivel, .00001”-.004” Infeed Stroke, 157 IPM Rapid Feedrate, Table Swivel, .00001’ Minimum Table Feed Increment, 394 IPM Rapid Table Feed, Spark Out, Dresser, ID Attachment

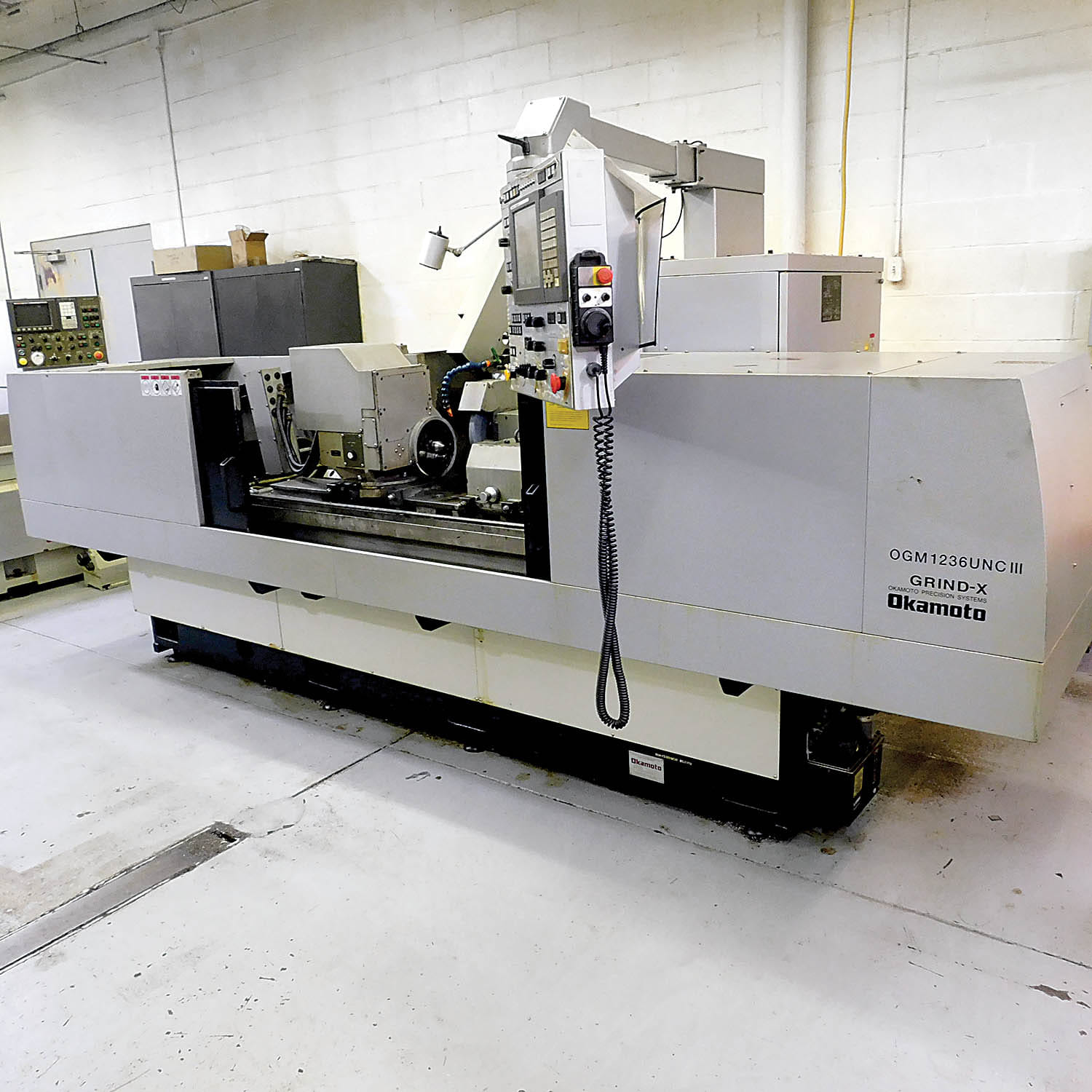

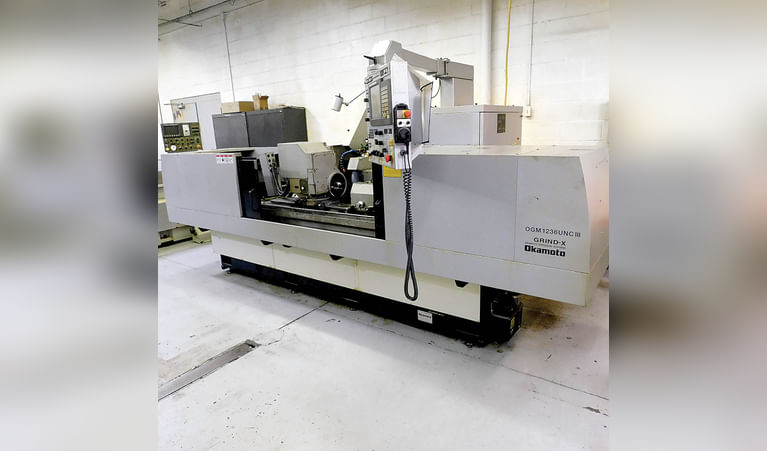

Okamoto Model OGM12-36UNC-III CNC Cylindrical Grinder, s/n 31112, New 2015, Fanuc CNC Control, 12.6” Swing Over Table, 36” Maximum Center Distance, 12” Maximum Diameter Ground, 14” X 1.5” X 5” Grinding Wheel Size, 1,610 RPM Grinding Wheel Speed, 11.8” Wheelhead Stroke (X-Axis), 30 Degree Wheelhead Swivel, .00001”-.004” Infeed Stroke, 157 IPM Rapid Feedrate, Table Swivel, .00001’ Minimum Table Feed Increment, 394 IPM Rapid Table Feed, Spark Out, Dresser

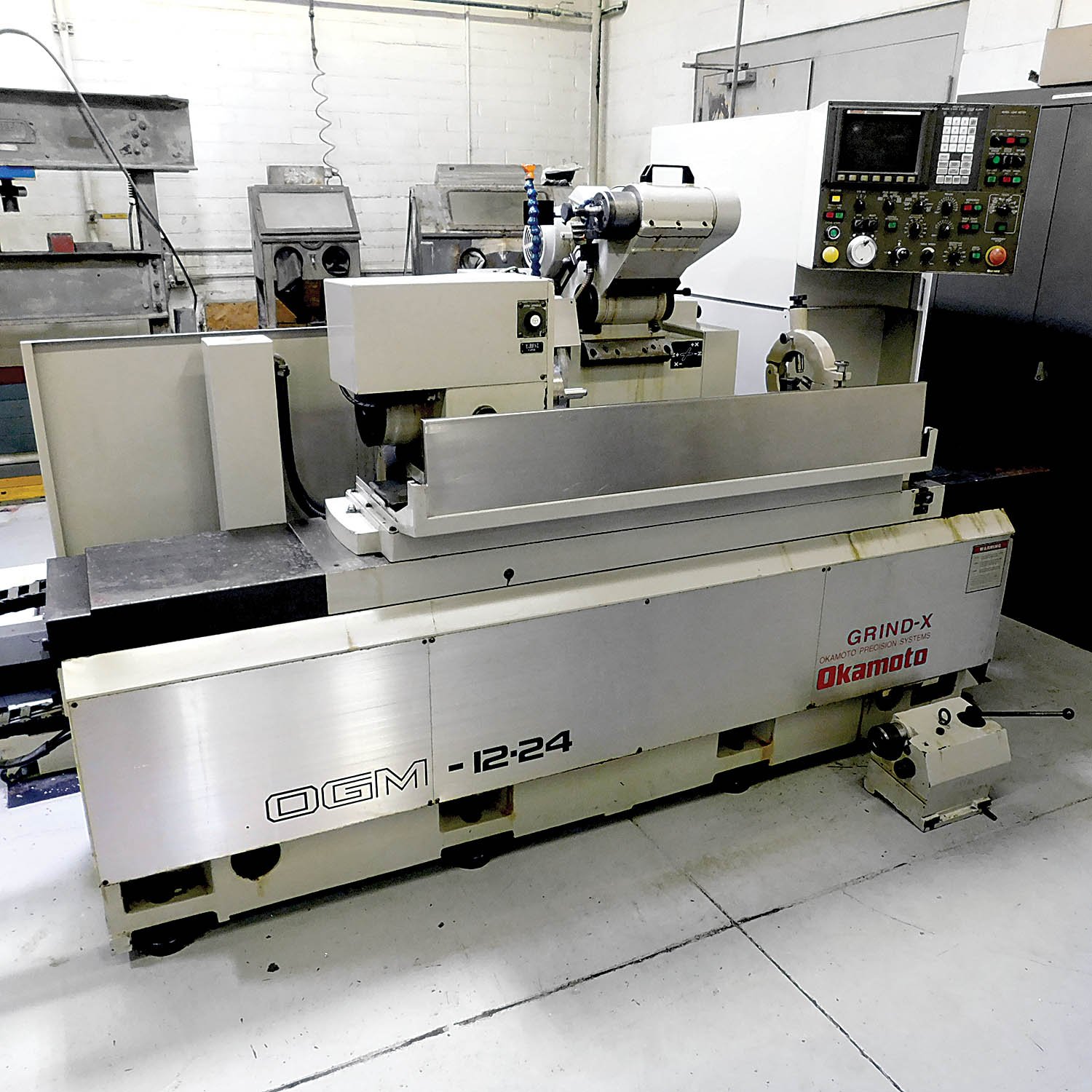

Okamoto Model OGM-1224 CNC Cylindrical Grinder, s/n 36030, New 2000, Fanuc CNC Control, 12.6” Swing Over Table, 24” Maximum Center Distance, 12” Maximum Diameter Ground, 14” X 1.5” X 5” Grinding Wheel Size, 1,770/2,000 RPM Grinding Wheel Speed, 11.8” Wheelhead Stroke (X-Axis), 30 Degree Wheelhead Swivel, .00001”-.002” Infeed Stroke, 157 IPM Rapid Feedrate, Table Swivel, .00001’ Minimum Table Feed Increment, 390 IPM Rapid Table Feed, Spark Out, Dresser, ID Attachment

DOOSAN CNC TURNING CENTER

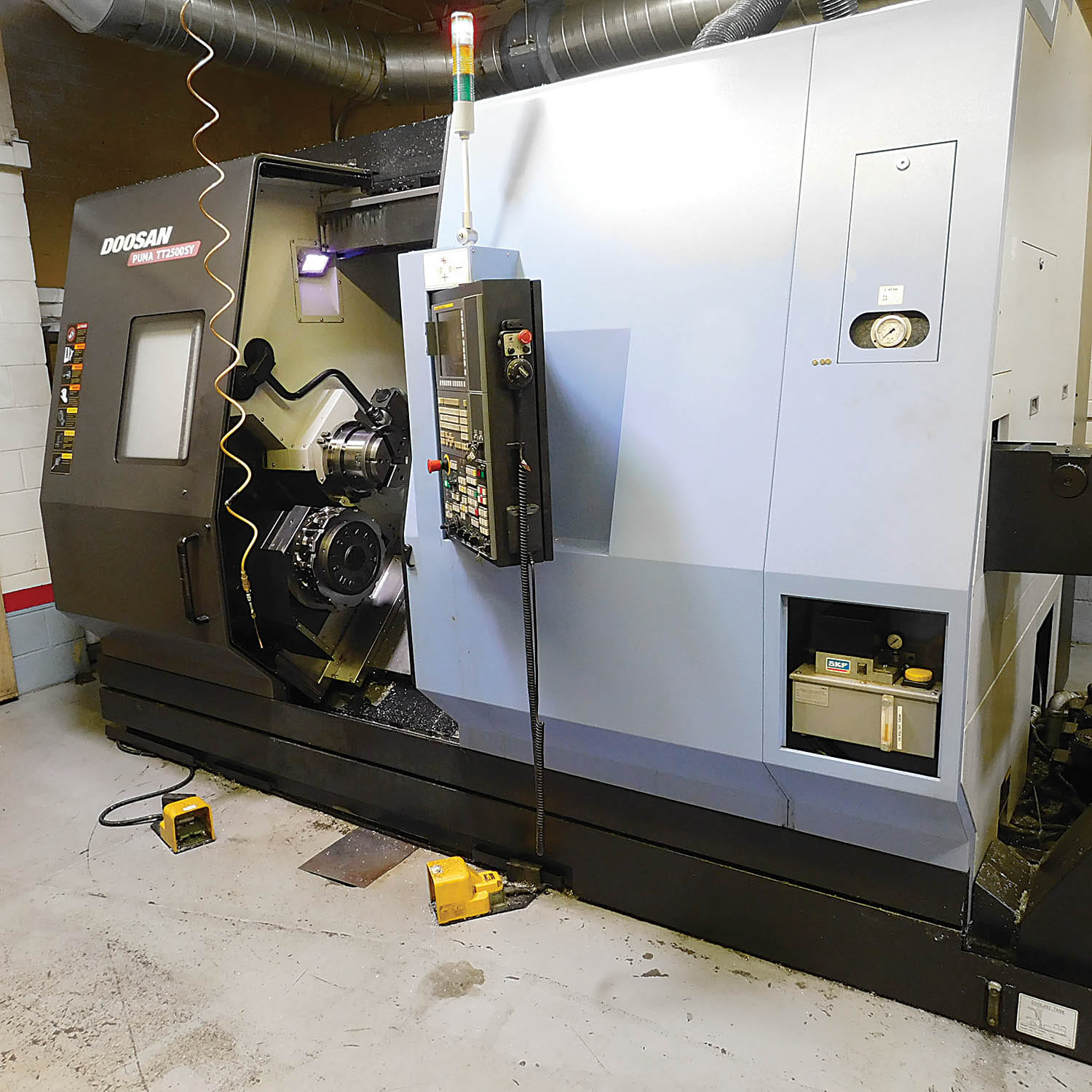

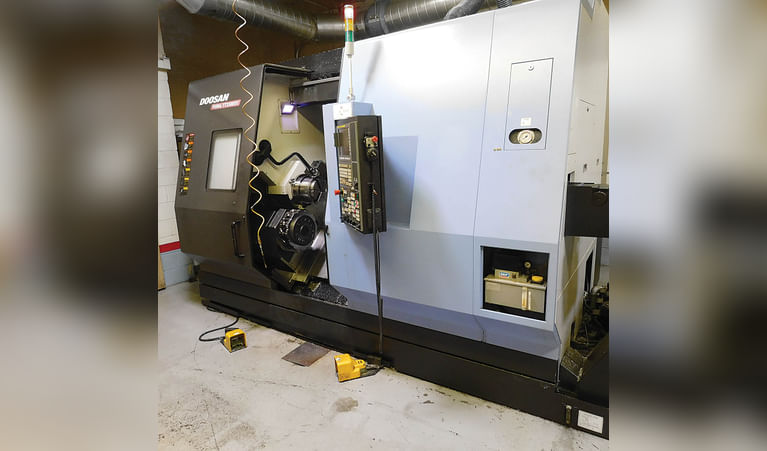

Doosan Model Puma TT 2500 SY CNC Turning Center, s/n ML0186, New 2014, Fanuc 31i-Model B CNC Control, 3” Bar Capacity, Sub Spindle, Twin Turret, C-Axis on Both Spindles, Milling, Y-Axis on Upper Turret, 31.5” Swing Over Bed, 24.4” Swing Over Saddle, 15.4” Upper Turret Maximum Turning Diameter, 11.8” Lower Turret Maximum Turning Diameter, 13.8” Max. Turning Length, X1 Travel 10”, Z1 Travel 31.5”, A (Sub Spindle) Travel 31.9”, X2 Travel 7.5”, Z2 Travel 35.4”, 12 Tool Position Per Turret, MP Systems High Pressure Coolant, Chip Conveyor, 14,912 Power On Hours, 2,427 Run Hours, 3,957 Cutting Hours

NAKAMURA-TOME CNC TURNING CENTERS

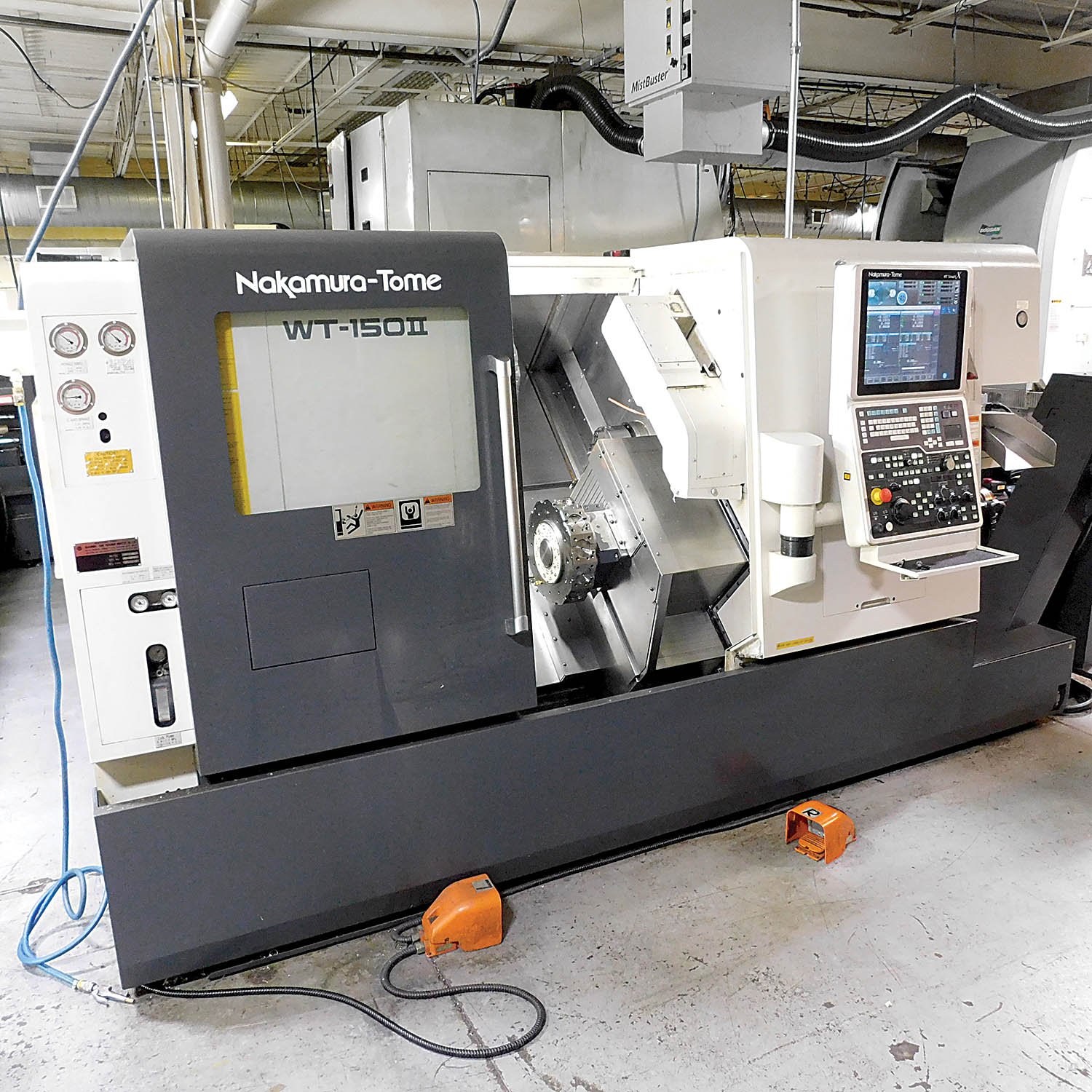

Nakamura-Tome Model WT-150II CNC Turning Center, s/n MD150807L, New 2018, NT Smart X CNC Control, 2” Bar Capacity, Sub Spindle, Twin Turret, C-Axis on Both Spindles, Milling, Y Axis on Upper Turret, B Axis, 7.48” Maximum Turning Diameter, 20.27” Maximum Turning Length, X1 Travel 6.59”, Z1 Travel 20.27”, X2 Travel 6.59”, Z2 Travel 20.27”, 12 Tool Positions Per Turret, Each Tool Position Accepts Driven Tools, High Pressure Coolant System, Chip Conveyor, 5,512 Power On Hours, 1,345 Run Hours

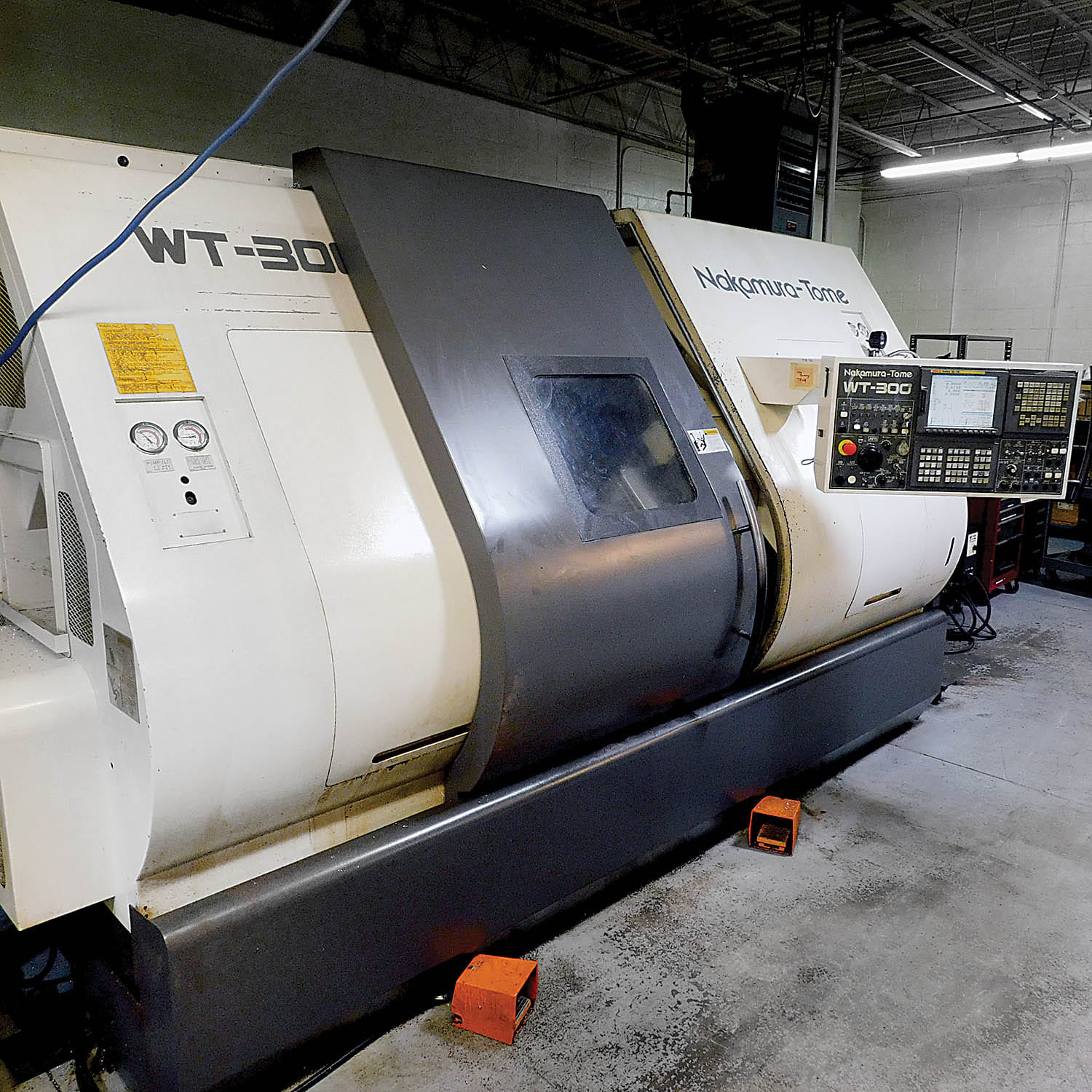

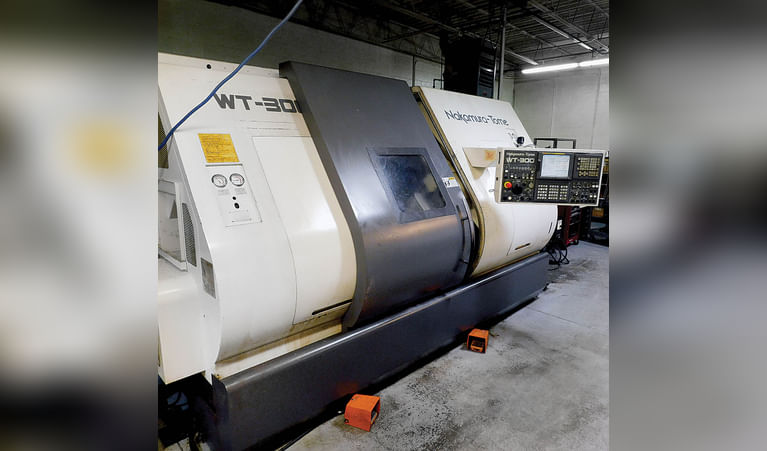

Nakamura-Tome Model WT-300 CNC Turning Center, s/n M301806, New 2008, Fanuc 18i-TB CNC Control, 2.5” Bar Capacity, Sub Spindle, Twin Turret, C-Axis on Both Spindles, Milling, Y Axis on Upper Turret, B Axis, 10.63” Maximum Turning Diameter, 30.71” Maximum Turning Length, X1 Travel 7.68”, Z1 Travel 30.71”, X2 Travel 7.68”, Z2 Travel 30.71”, B Axis Travel 33.46”, 12 Tool Positions Per Turret, High Pressure Coolant System, Chip Conveyor, LNS QL Servo S3 Bar Feed, 29,631 Power On Hours, 4,222 Operating Hours, 5,714 Cutting Hours

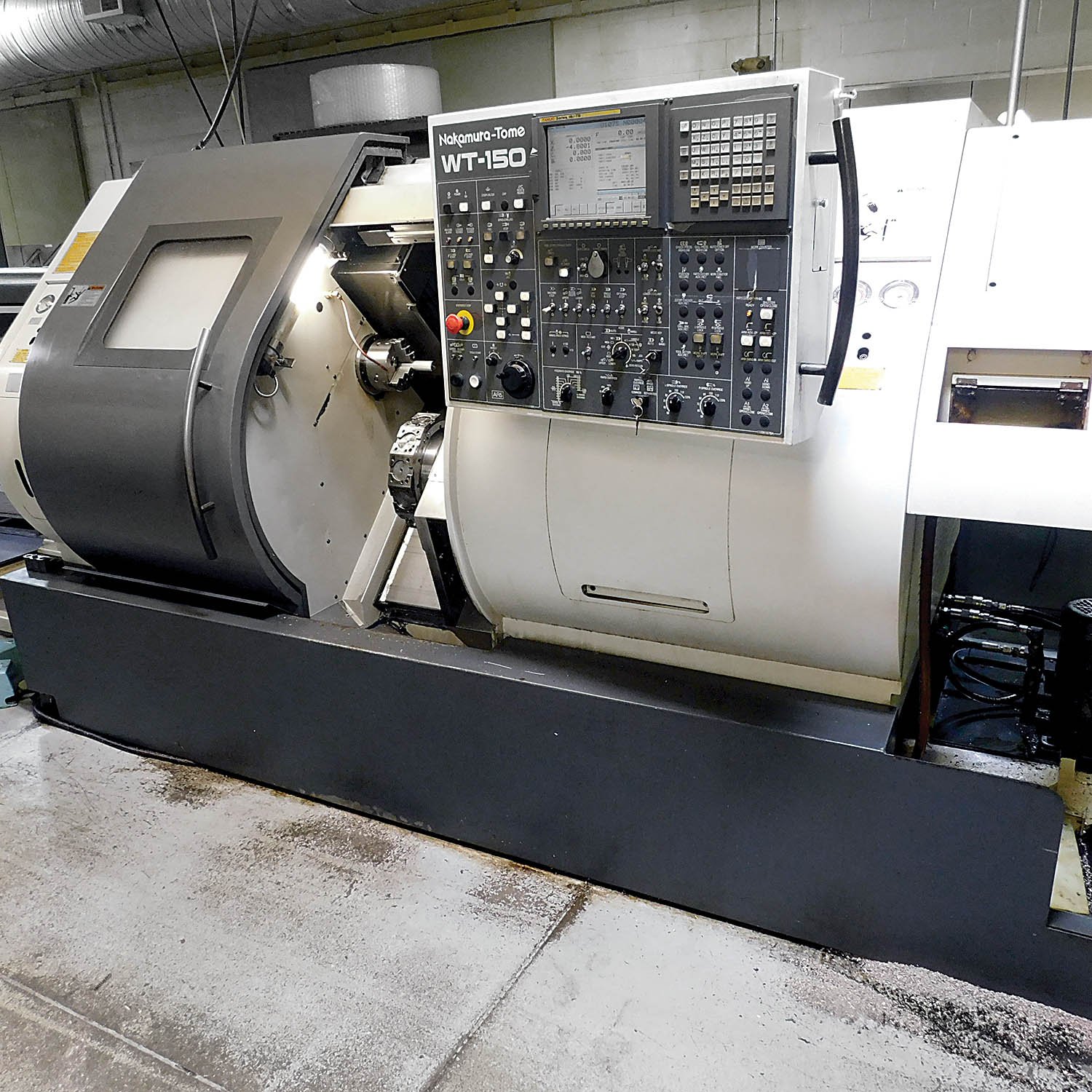

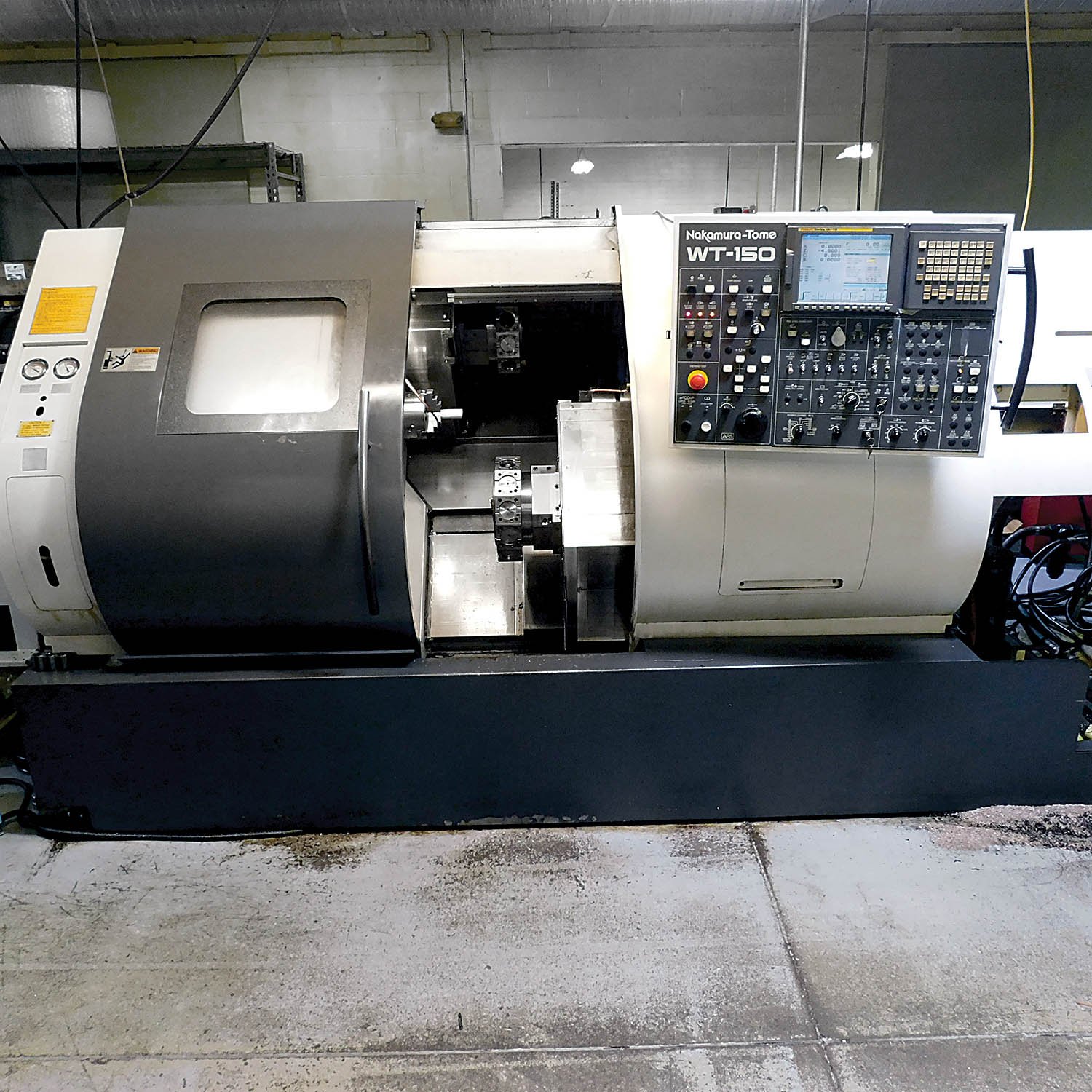

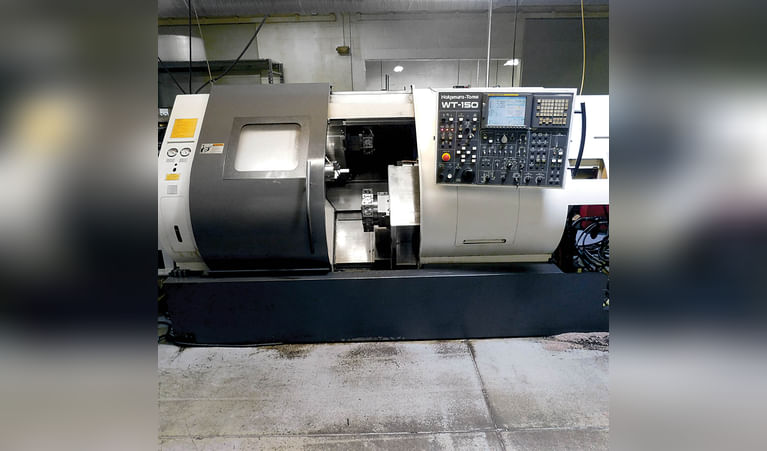

Nakamura-Tome Model WT-150 CNC Turning Center, s/n M151605, New 2004, Fanuc 18i-TB CNC Control, 2” Bar Capacity, Sub Spindle, Twin Turret, C-Axis on Both Spindles, Milling, Y Axis on Upper Turret, B Axis, 7.48” Maximum Turning Diameter, 20.27” Maximum Turning Length, X1 Travel 6.59”, Z1 Travel 20.27”, X2 Travel 6.59”, Z2 Travel 20.27”, B Axis Travel 23.7”, 12 Tool Positions Per Turret, High Pressure Coolant System, Chip Conveyor, LNS Servo S3 on Left Hand Spindle, LNS Blaze Air Unloader on Right Spindle, 38,409 Power On Hours, 6,946 Operating Hours, 4,372 Cutting Hours

Nakamura-Tome Model SC-200 CNC Turning Center, s/n P204404, New 2012, Fanuc 21i-TB CNC Control, 2.55” Bar Capacity,  17” Max. Turning Diameter, 14.6” Max. Turning Length, X Axis Travel 10”, Z Axis Travel 14.4”, 12 Tool Station, 15 HP, Chip Conveyor, 8” 3-Jaw Chuck, Parts Catcher, 14,442 Power On Hours, 3,183 Cutting Hours, High Pressure Coolant System

CNC VERTICAL BORING MILLS WITH MILLING

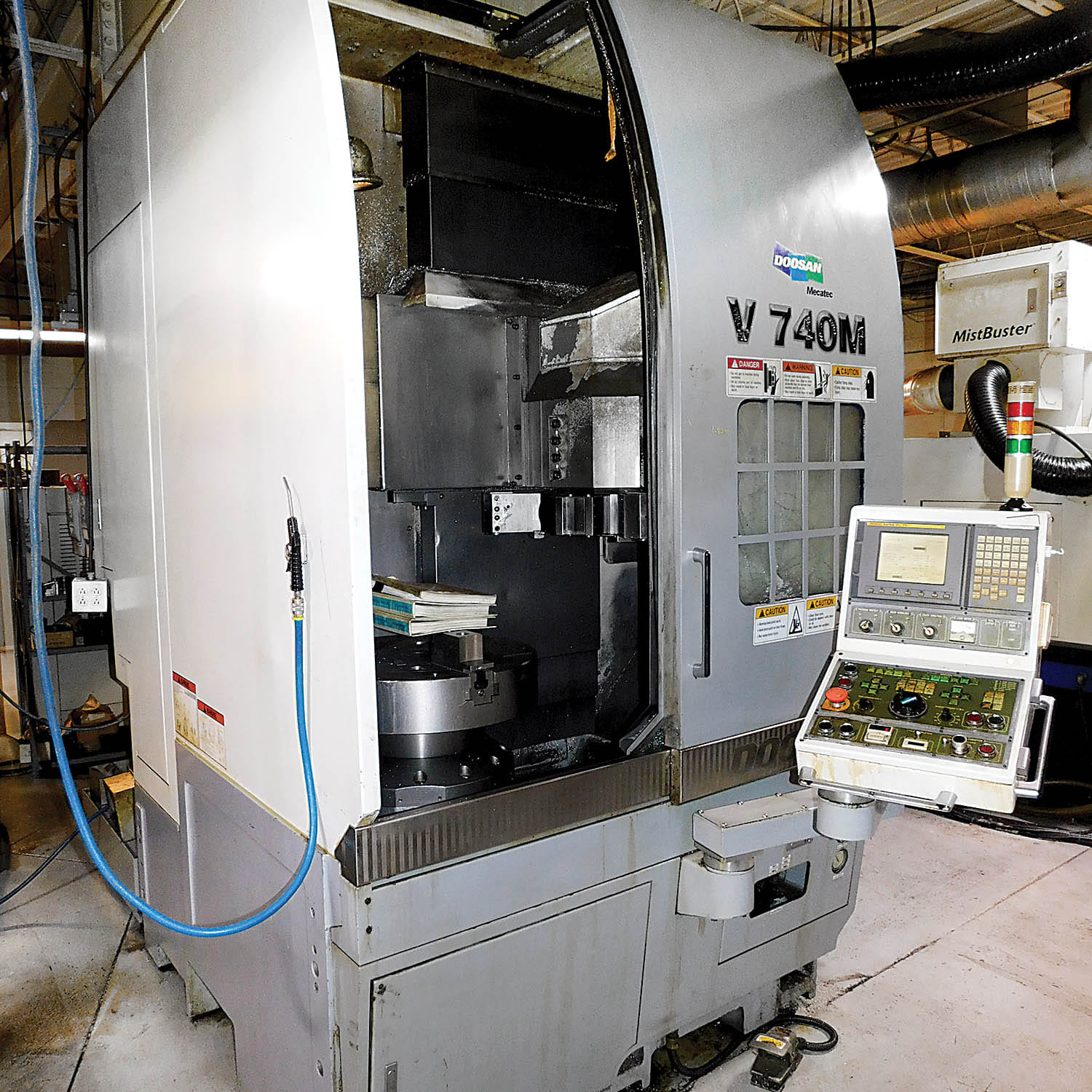

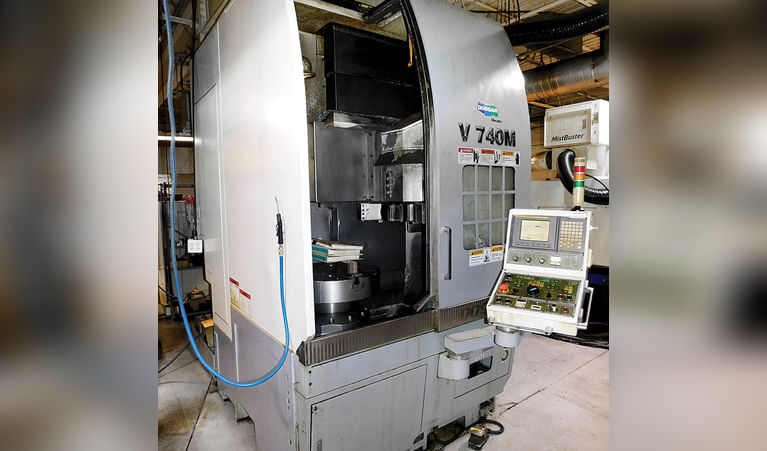

Doosan Model V740M CNC VTL, s/n LVJ-1019, New 2007, Fanuc 0i-TC CNC Control, Milling, C-Axis on Spindle, 24” 3-Jaw Chuck, 29.13” Max. Swing, 29.92” Max. Turning Diameter, 29.13” Max. Cutting Height, 50 HP Max., 12 Tool Positions, Chip Conveyor, 1,436 Operating Hours, 1,153 Cutting Hours

Doosan Model V740M CNC VTL, s/n LVJ-1013, New 2007, Fanuc 21i-TB CNC Control, Milling, C-Axis on Spindle, 24” 3-Jaw Chuck, 29.13” Max. Swing, 29.92” Max. Turning Diameter, 29.13” Max. Cutting Height, 50 HP Max., 12 Tool Positions, Chip Conveyor, 5,362 Cutting Hours

CNC VERTICAL MACHINING CENTERS

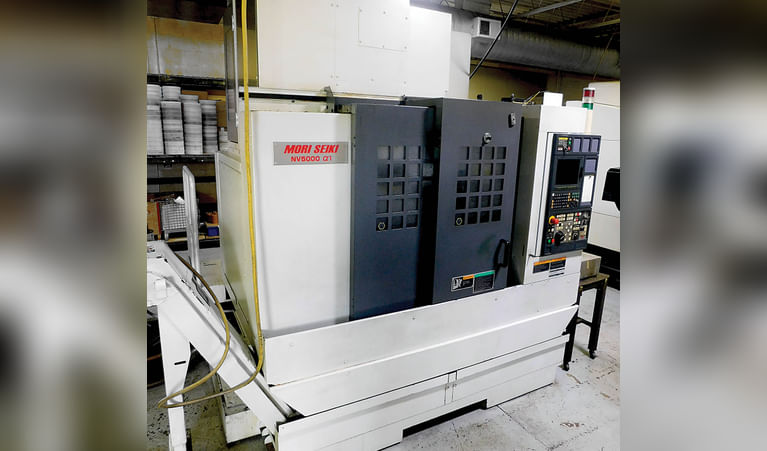

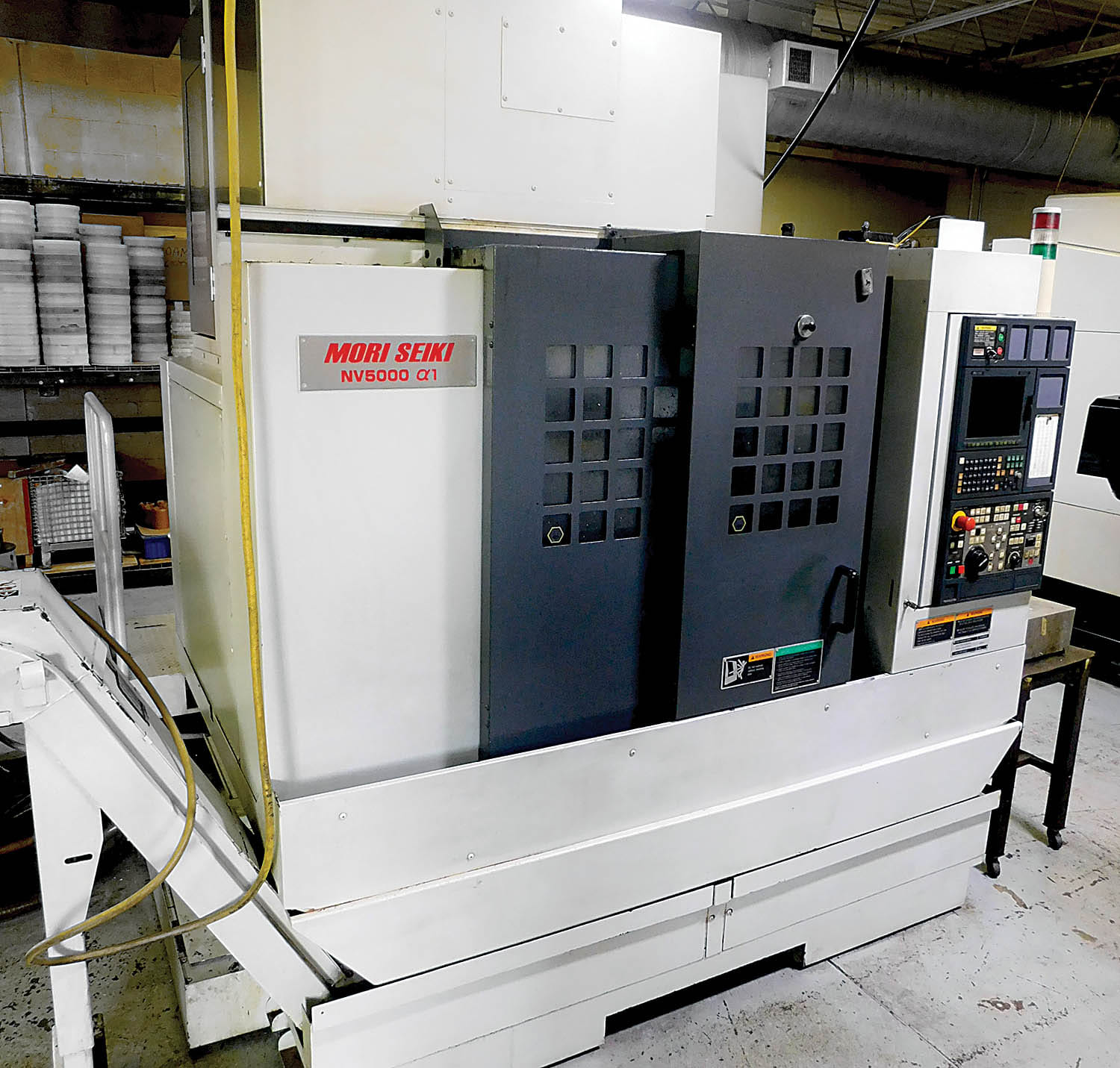

Mori-Seiki Model NV5000?1A/40 CNC Vertical Machining Center, s/n NV501FF4026, New 2006, Mori MSX-501 III (Fanuc 18i-MB) CNC Control, 40 Taper, 30 ATC, 43.31” X 23.62” Table, 31.49” X 20.07” X 20.07” Travels, Chip Conveyor, Chip Blaster High Pressure Coolant

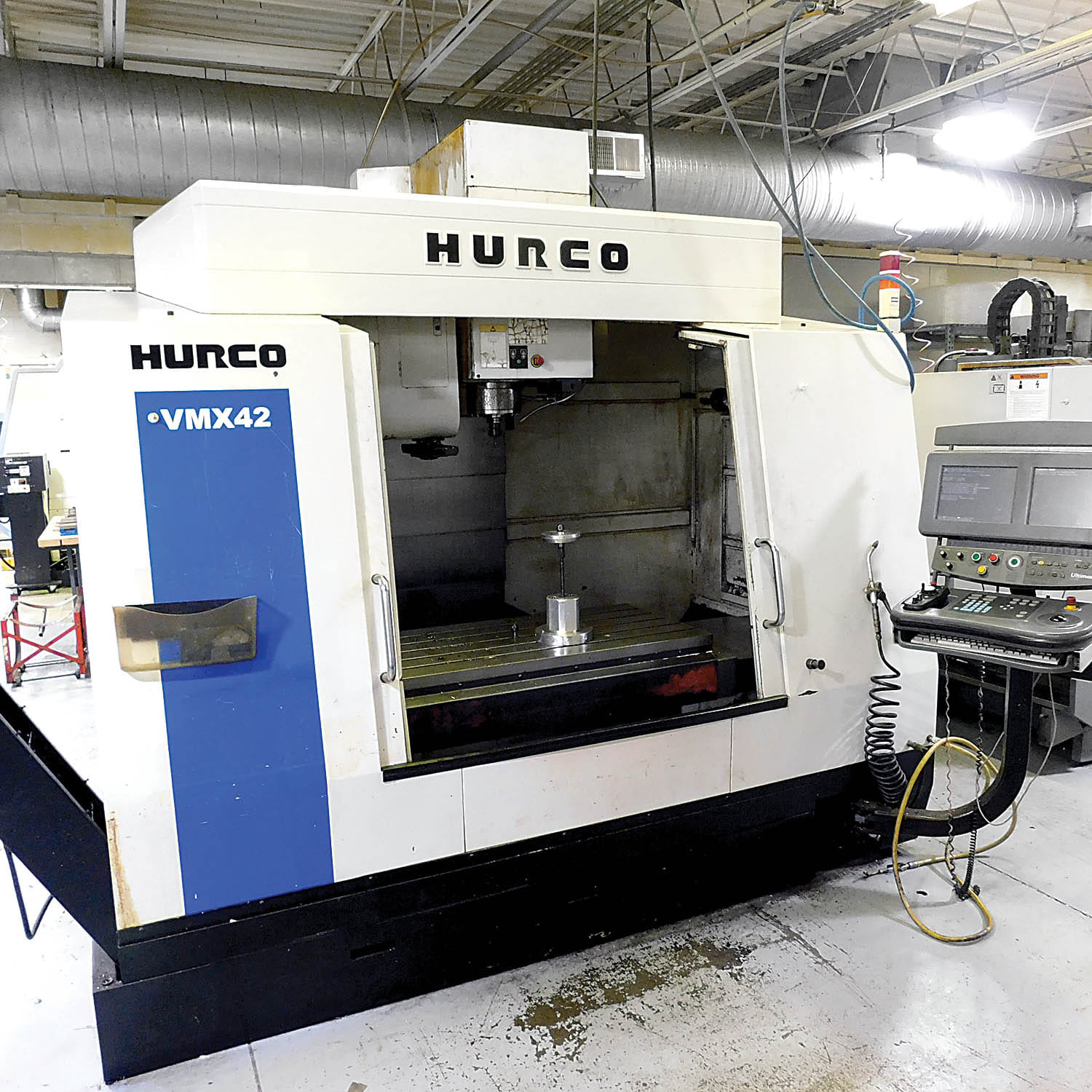

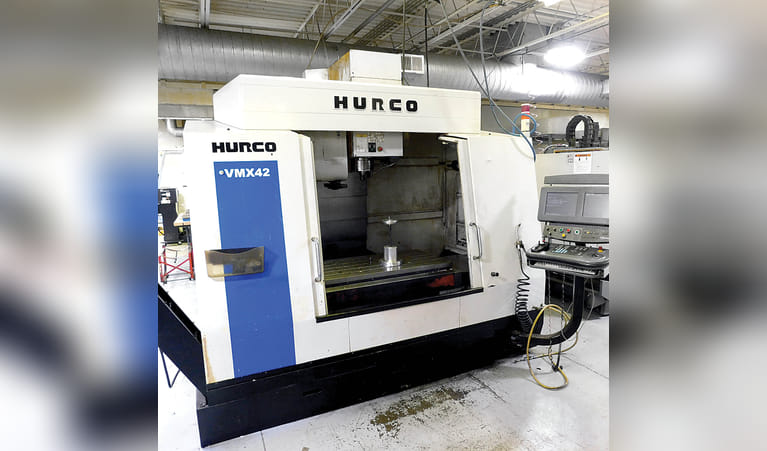

Hurco Model VMX-42 CNC Vertical Machining Center, s/n M442-06006065DFA, New 2005, Hurco Ultimax CNC Control, 40 Taper, 24 ATC, 10,000 RPM, 50" X 24" Table, 42" X 24" X 24" Travels, Chip Conveyor

CNC WIRE EDM MACHINES

Mitsubishi Model FA20 CNC Wire EDM, s/n 53A2M642, New 2004, Mitsubishi W21FA-2 CNC Control, Auto Threader, Wire Chopper, Chiller, Table Dimensions 41.3” X 31.5”, X Travel 19.7”, Y Travel 13.8”, Z Travel 11.8”, U and V Travel 3.0”, 5-Axis

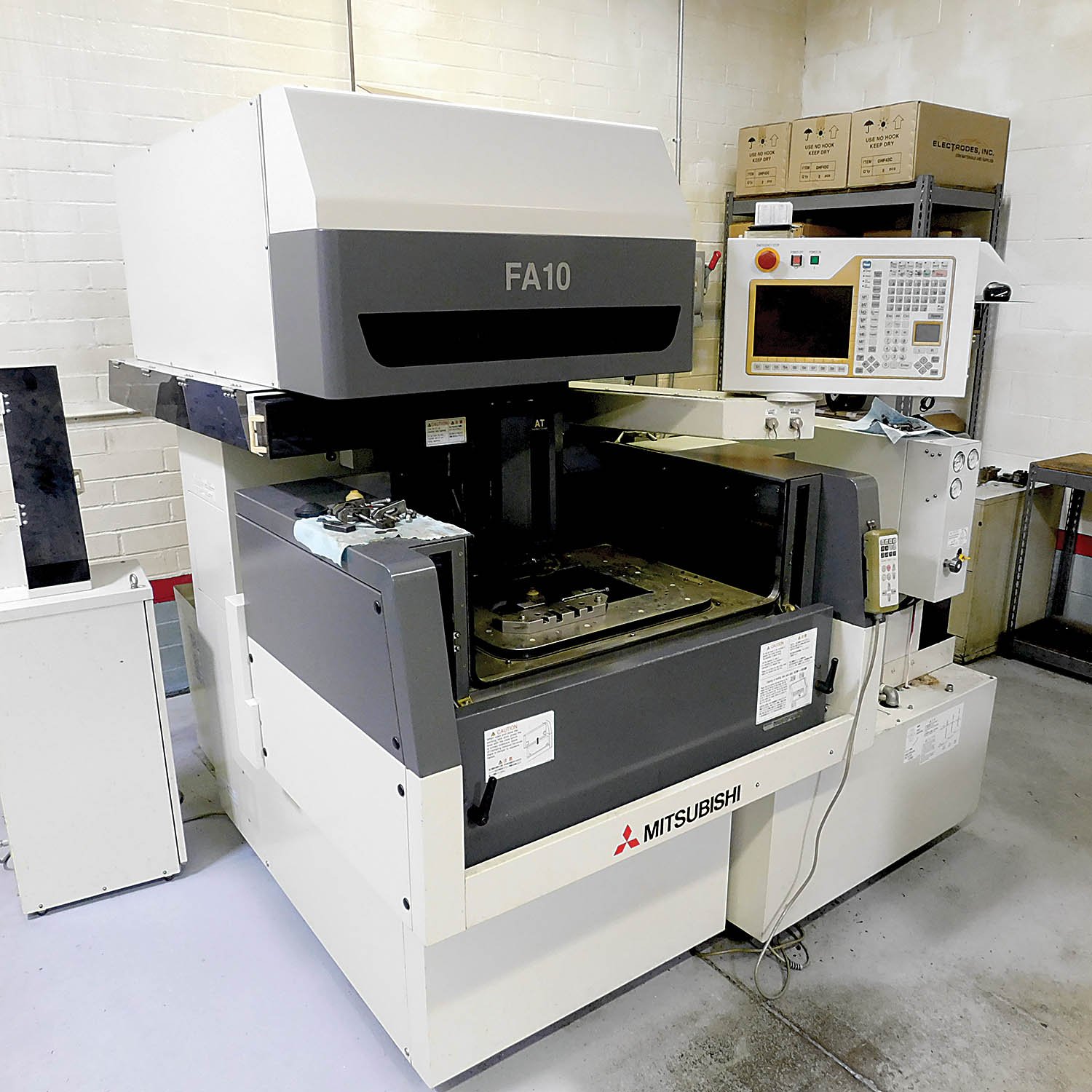

Mitsubishi Model FA10M CNC Wire EDM, s/n 51A1M202, New 2002, Mitsubishi W21FA-2 CNC Control, Auto Threader, Wire Chopper, Chiller, Table Dimensions 23.2” X 20.2”, X Travel 13.7”, Y Travel 9.8”, Z Travel 8.6”, U and V Travel 1.25”, 5-Axis

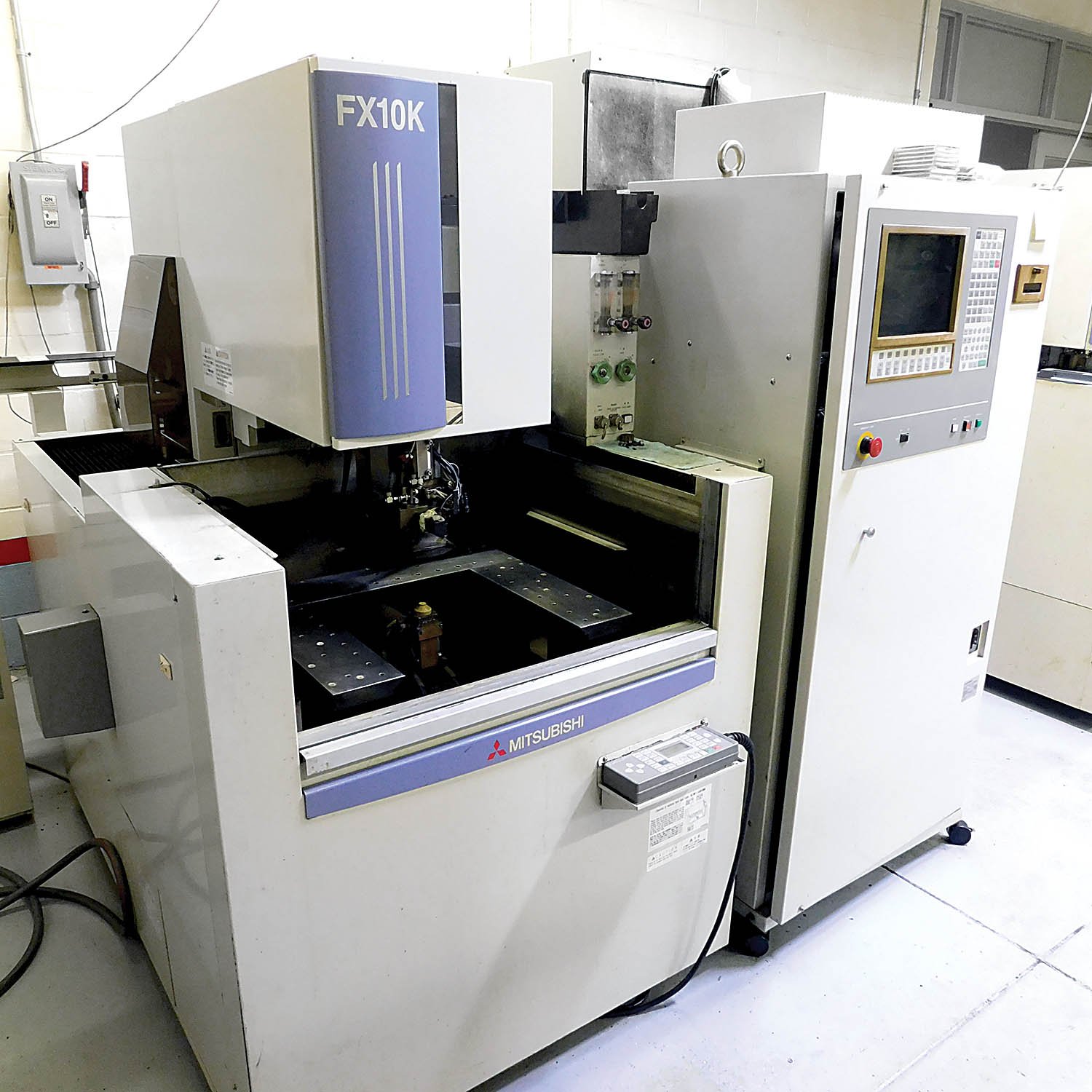

Mitsubishi Model FX10K CNC Wire EDM, s/n 09K10460, New 1999, Mitsubishi CNC Control, 13.77’ X 9.84” X 8.66” Travels, U and V Axis 1.25”, Wire Diameter .004” - .012”, Fine Finish Option

Mitsubishi Model FX10 CNC Wire EDM, s/n 07E10805, New 1997, Mitsubishi CNC Control, 13.77’ X 9.84” X 8.66” Travels, U and V Axis 1.25”, Wire Diameter .004” - .012”



CNC WIRE EDM MACHINES (CONTINUED)

Mitsubishi Model DWC-90HA CNC Wire EDM, s/n 0209L483, New 1992, Mitsubishi CNC Control, 11.81” X 9.84” X 6.89” Travels, 16.5” X 20.1” Table Size, Filtration System and Chiller, .004”-.013” Wire Diameter

AUTOMATIC SURFACE GRINDERS

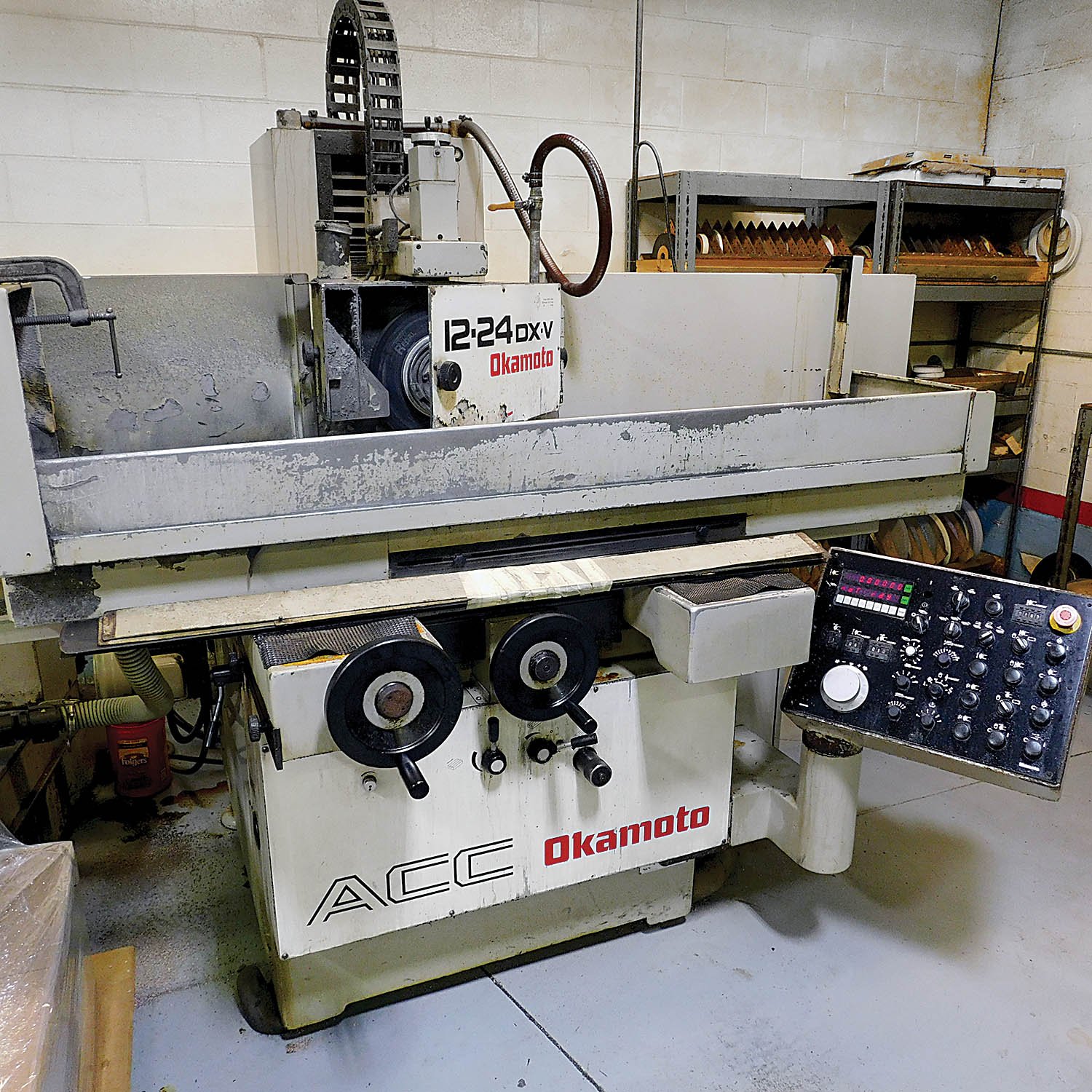

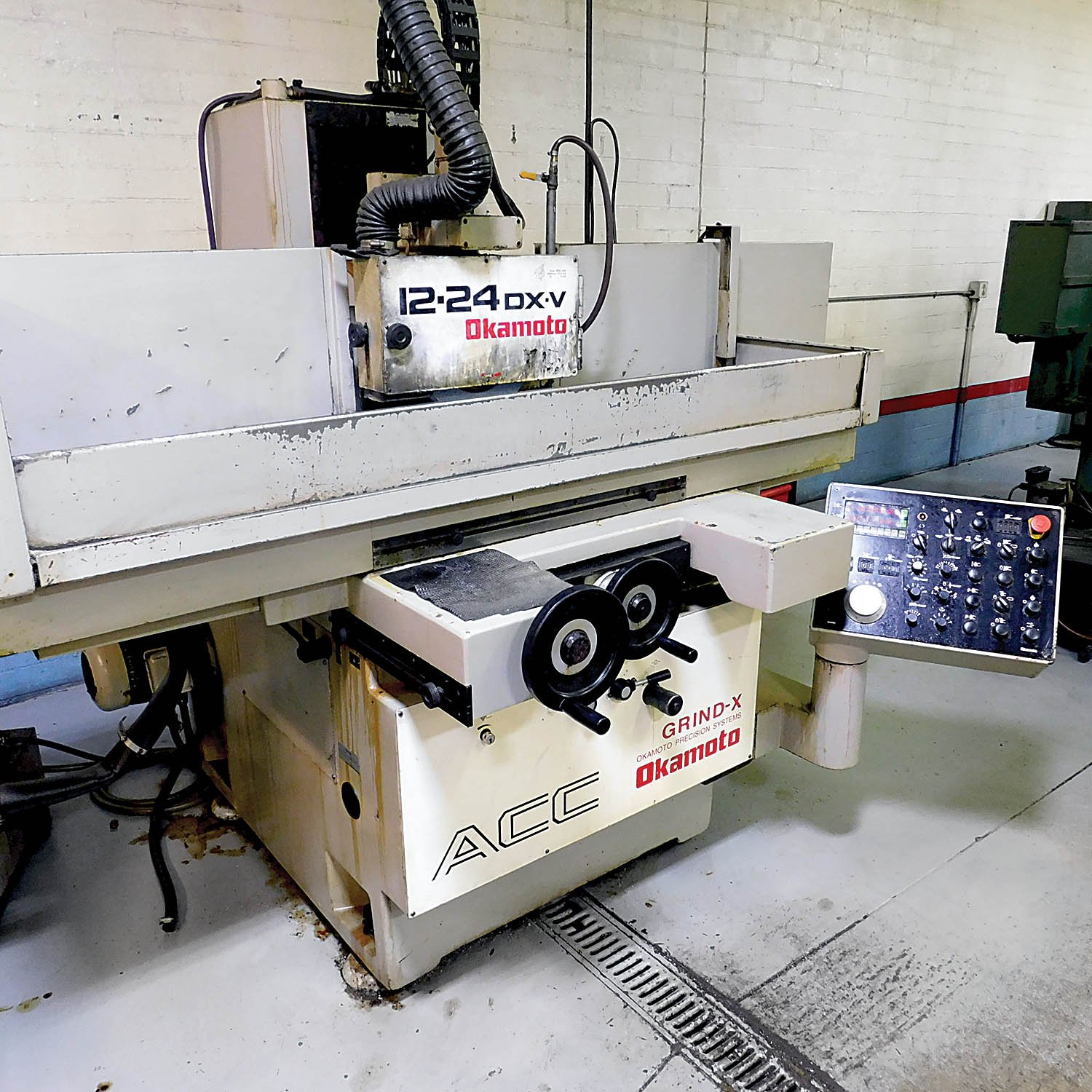

Okamoto Model ACC-1224 DX-V Automatic Surface Grinder, s/n 64661, New 2000, 12” X 24”, 3-Axis, Over the Wheel Dresser, Coolant, Electro Magnetic Chuck

Okamoto Model ACC-1224 DX-V Automatic Surface Grinder, s/n 64472, New 1998, 12” X 24”, 3-Axis, Over the Wheel Dresser, Coolant, Electro Magnetic Chuck

Okamoto Model ACC-618-DX2 Automatic Surface Grinder, s/n 43130, New 1998, 6” X 18”, 2-Axis, Coolant, Magnetic Chuck

DOUBLE DISC GRINDER

Koyo Mattison Model KM-221-G Double Disc Grinder, s/n 8010DG-135, 8.7” Wheels

ROTARY SURFACE GRINDER

Sundstrand Model H-24 Rotary Surface Grinder, s/n 44-22, 24” Magnetic Chuck, 34” Maximum Swing, 20 HP, 10” Under the Wheel

AUTOMATIC HORIZONTAL BAND SAW

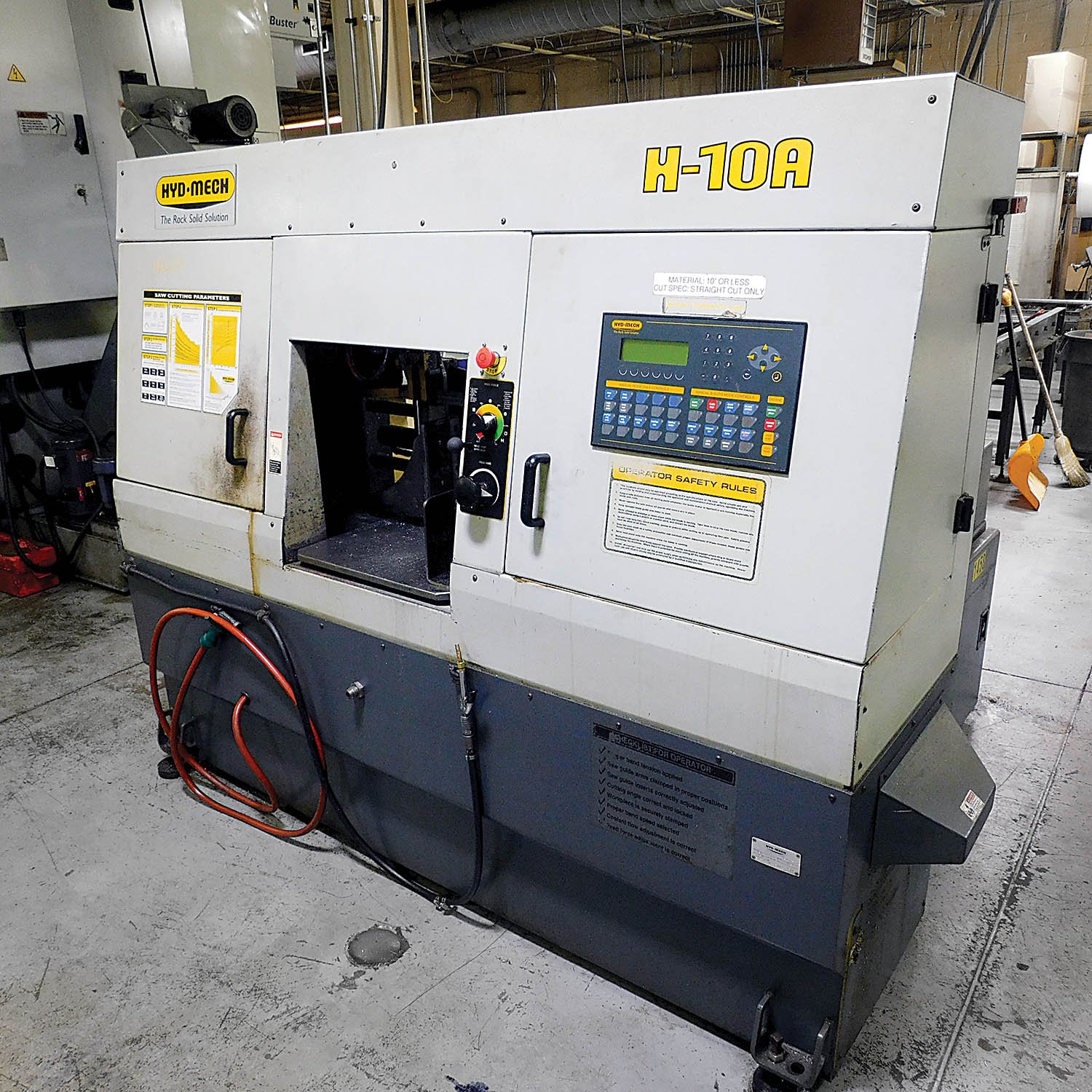

Hyd-Mech Model H-10A Automatic Horizontal Band Saw, s/n HSA0107091, New 2007, 10” X 10” Rectangular Capacity, 10” Round Capacity, 1 1/4” Blade, 5 HP, 24” Single Stroke Feed, Multi-Indexing, PLC Control

INSPECTION MACHINERY

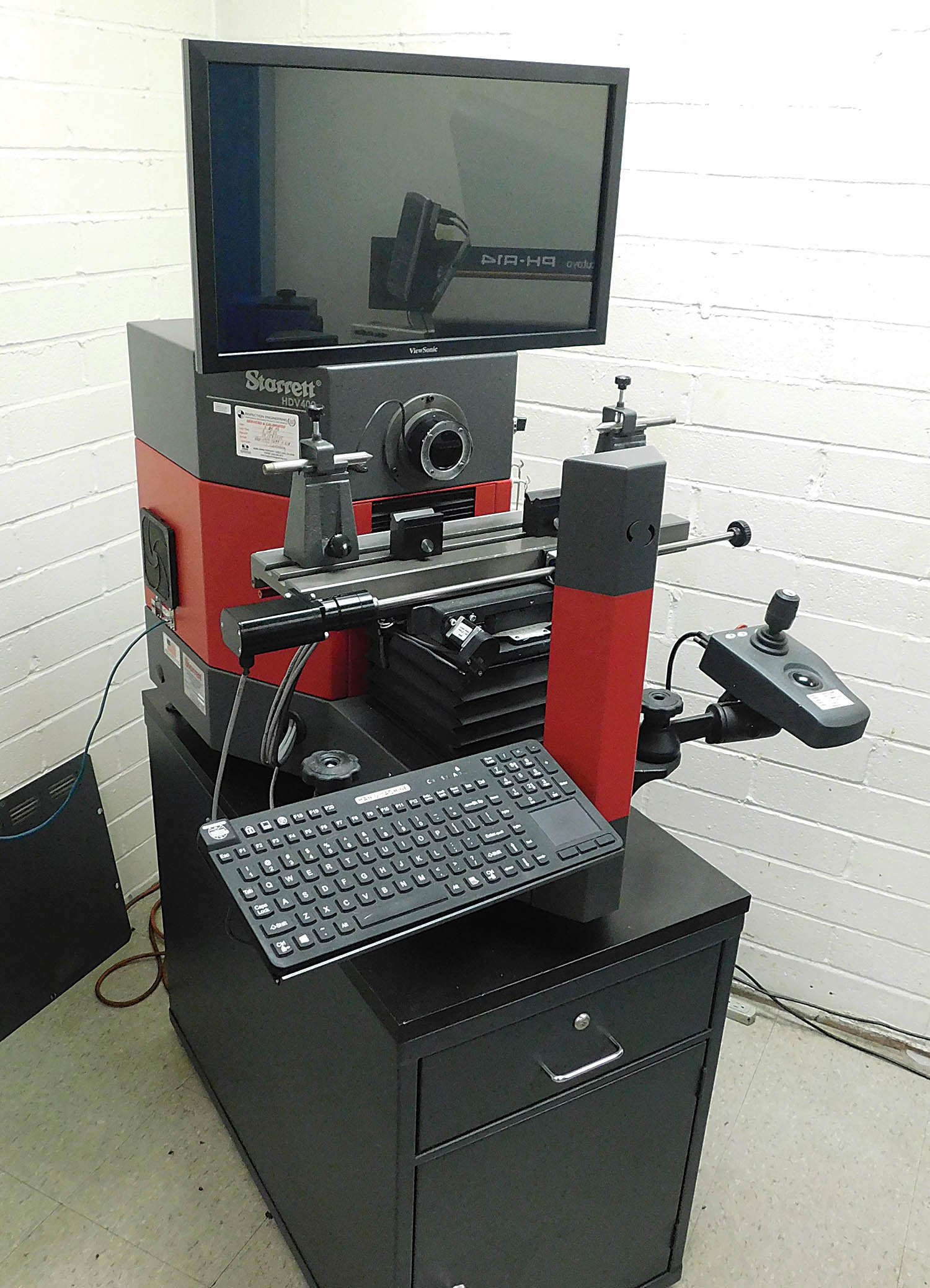

Starrett Model HDV-400 M3-CNC-2LED Horizontal Digital Video Comparator, s/n HDV-0419-4684-0518, New 2018, Touch Screen Control, Metlogix M3 Operating Software 5MP Digital Video Camera

Brown & Sharpe Mistral 070705 Coordinate Measuring Machine, s/n 247, New 2013, 24” X 36” X 18” Travels, Renishaw M1P Probe, Operating Software

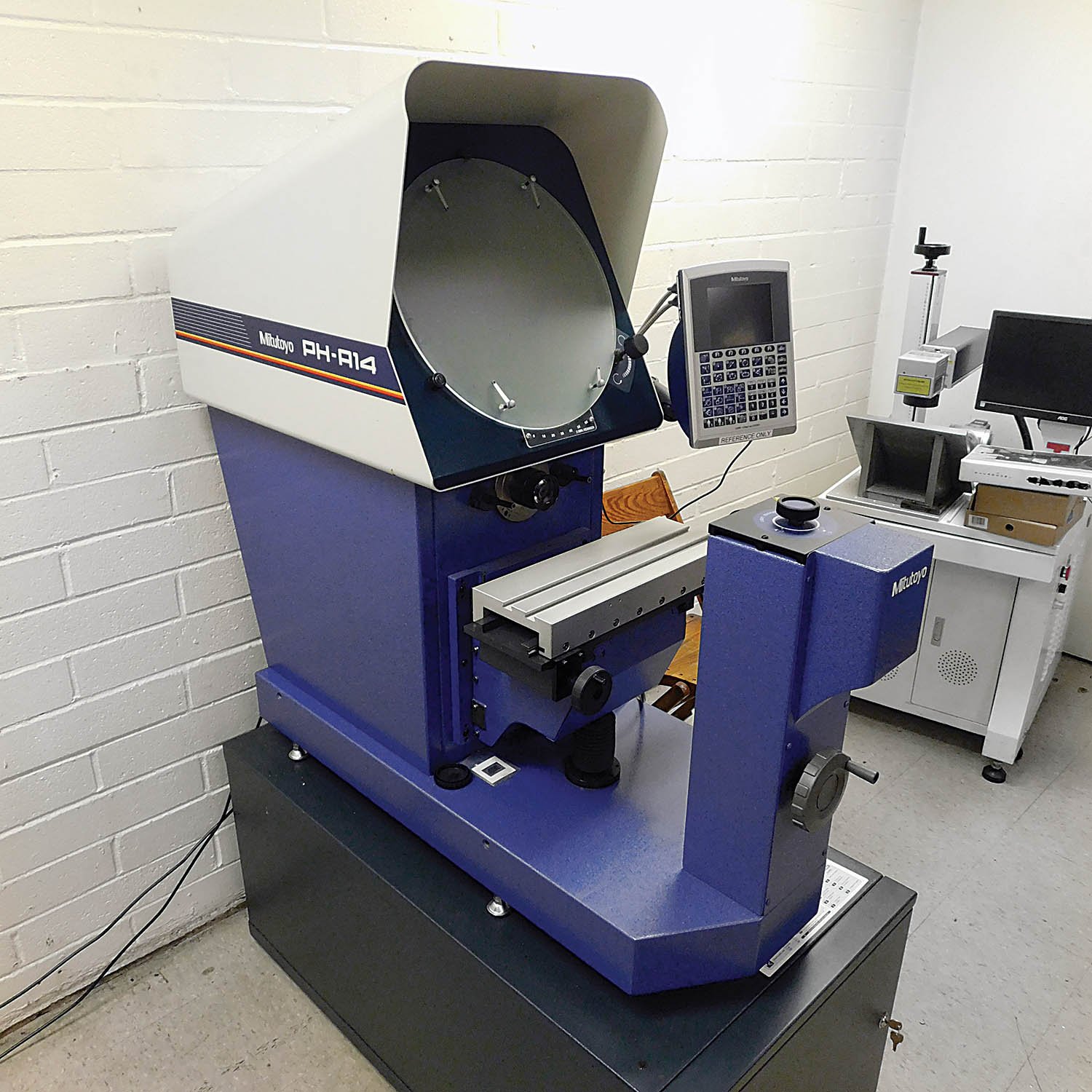

Mitutoyo Model PH-A14 Optical Comparator, s/n 125501708, New 2019, 14” Screen, QM Data 200 Processor/D.R.O.

Micro-Vu Spectra Video Measuring Machine, s/n 6765, Q16 Processor

AIR COMPRESSORS

Ingersoll Rand Model L22 Rotary Screw Air Compressor, s/n D187131, New 2019, 30 HP

Ingersoll Rand Integra Rotary Screw Air Compressor, 30 HP



MISCELLANEOUS MACHINERY

Haas HRT-210 CNC Indexer, 8”, with Tailstock

Raycus 30W Fiber Laser Parts Marking Machine, New 2018

Blanchard #11 Rotary Surface Grinder, s/n 3853, 11” Wheel, 16” Magnetic Chuck

Okamoto Linear 618 Hand Feed Surface Grinder, Walker Magnetic Chuck, s/n 8967, New 1999

Moore #2 Jig Grinder, s/n 7487

Manley 75 Ton H-Frame Hydraulic Shop Press

Excello Model 174 Centerlap

Hardinge Model HSL Speed Lathe

Extrude Hone Model E73 Abrasive Flow Machine, Hydraulic

Sunnen Model MBC-1805D Tool Room Hone, s/n 91533, Power Stroke

Wellsaw Model 1118 Horizontal Band Saw, s/n 2546, 11” X 18” Capacity

Rockwell 20” Vertical Band Saw, Blade Welder, s/n 1725415

Bridgeport Vertical Mill with Electronic Variable Speed Spindle, 30 Taper, 9” X 42” Table

Millport 3 HP Vertical Mill with Electronic Variable Speed Spindle, Accurite D.R.O.

Top One 17” X 40” Engine Lathe, Inch/Metric, Gap Bed, Anilam D.R.O., 3 and 4-Jaw Chuck

Roll In Universal Band Saw

K.O. Lee 618 Hand Feed Surface Grinder

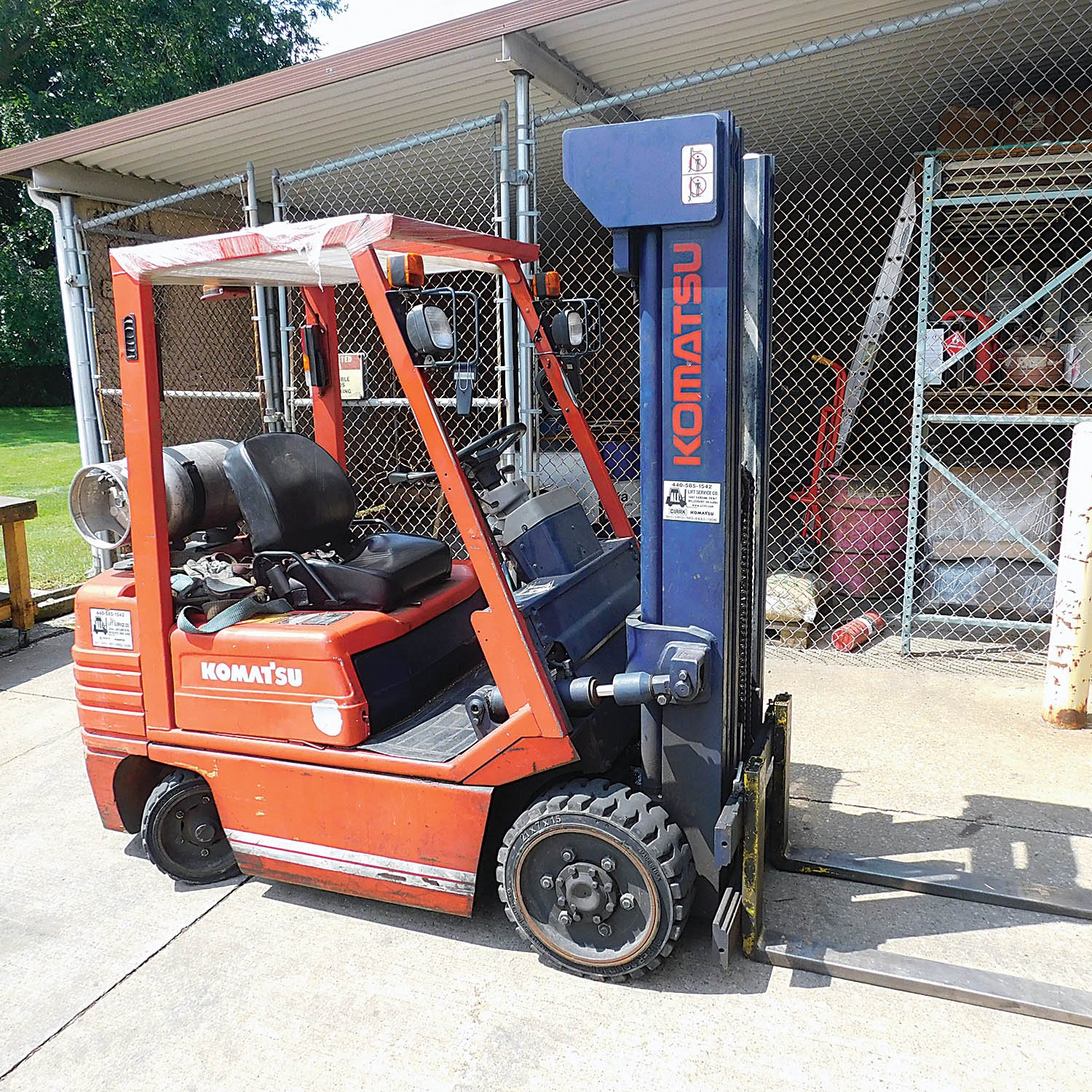

Komatsu Model FG25ST-11 Fork Lift, s/n 102383A, 4,480 Lb. Capacity, LP, 3-Stage Mast, Cage, Hard Tire

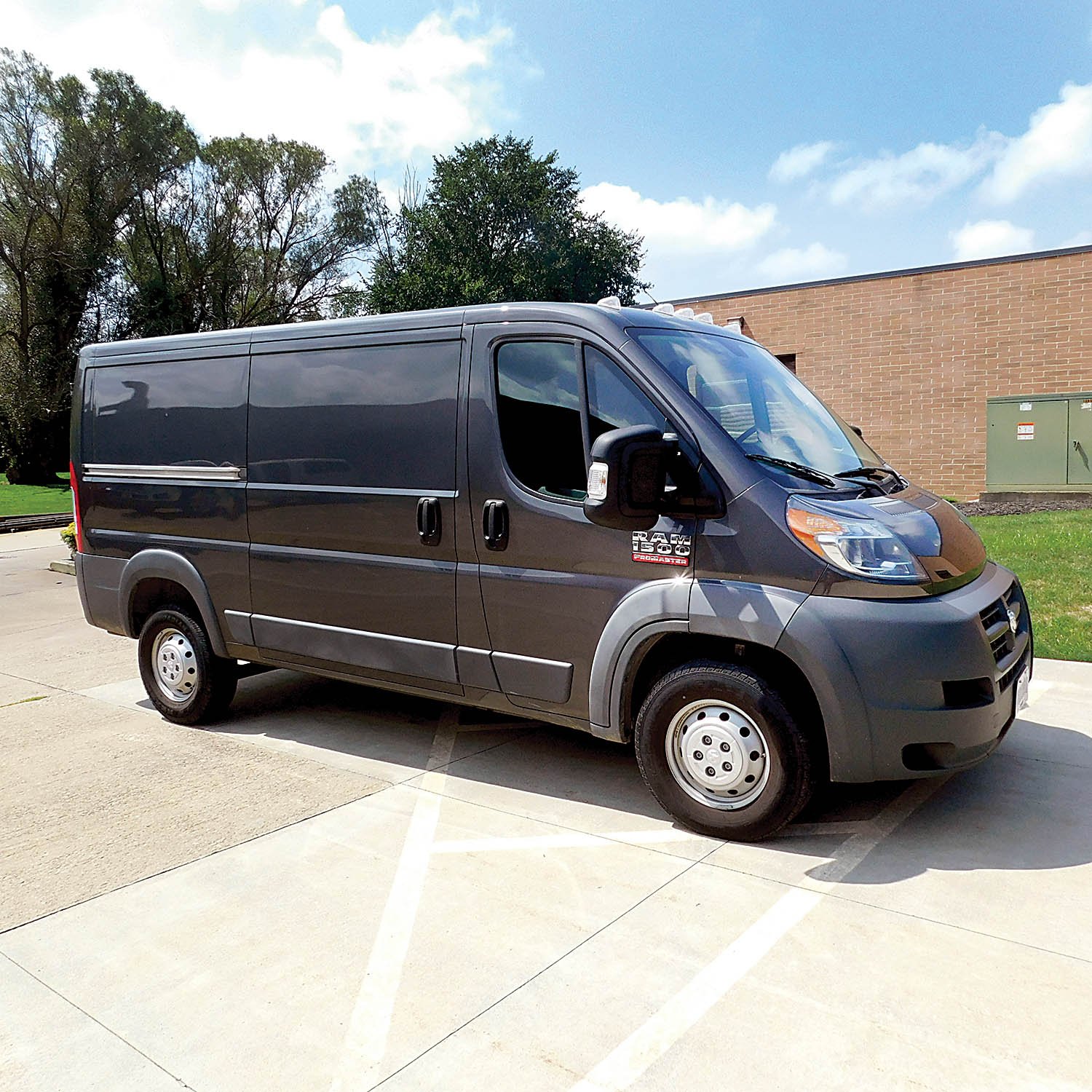

2018 Ram Pro Master Cargo Van, VIN 3C6TRVAG9JE146750, Auto, AC, Cruise, PW, 28,176 Miles

TOOLING, GAGING AND SHOP SUPPORT ITEMS

Mills, Drills, Reamers, Taps, Dies, Carbide Mills, Carbide Drills, Carbide Inserts, 40 Taper Holders, CNC Collets, Large Quantity Live Mill Tools for CNC Turning Centers, Bushings, Collets, Kurt Vises, Rotary Tables, Dressers, Lathe Chucks, CNC Lathe Holders, Carbide Tool Holders, Saw Blades, Grinding Wheels, Abrasives, Building and Shop Maintenance Items, Micrometers, Calipers, Height Gages, Bore Gages, Surface Plates, Jo Blocks, 1-2-3 Blocks, Shop and Office Furnishings, Steel Racks, Indexers, EDM Wire, Pedestal Grinders, Sanders, Small Drill Presses, Many Additional Items
